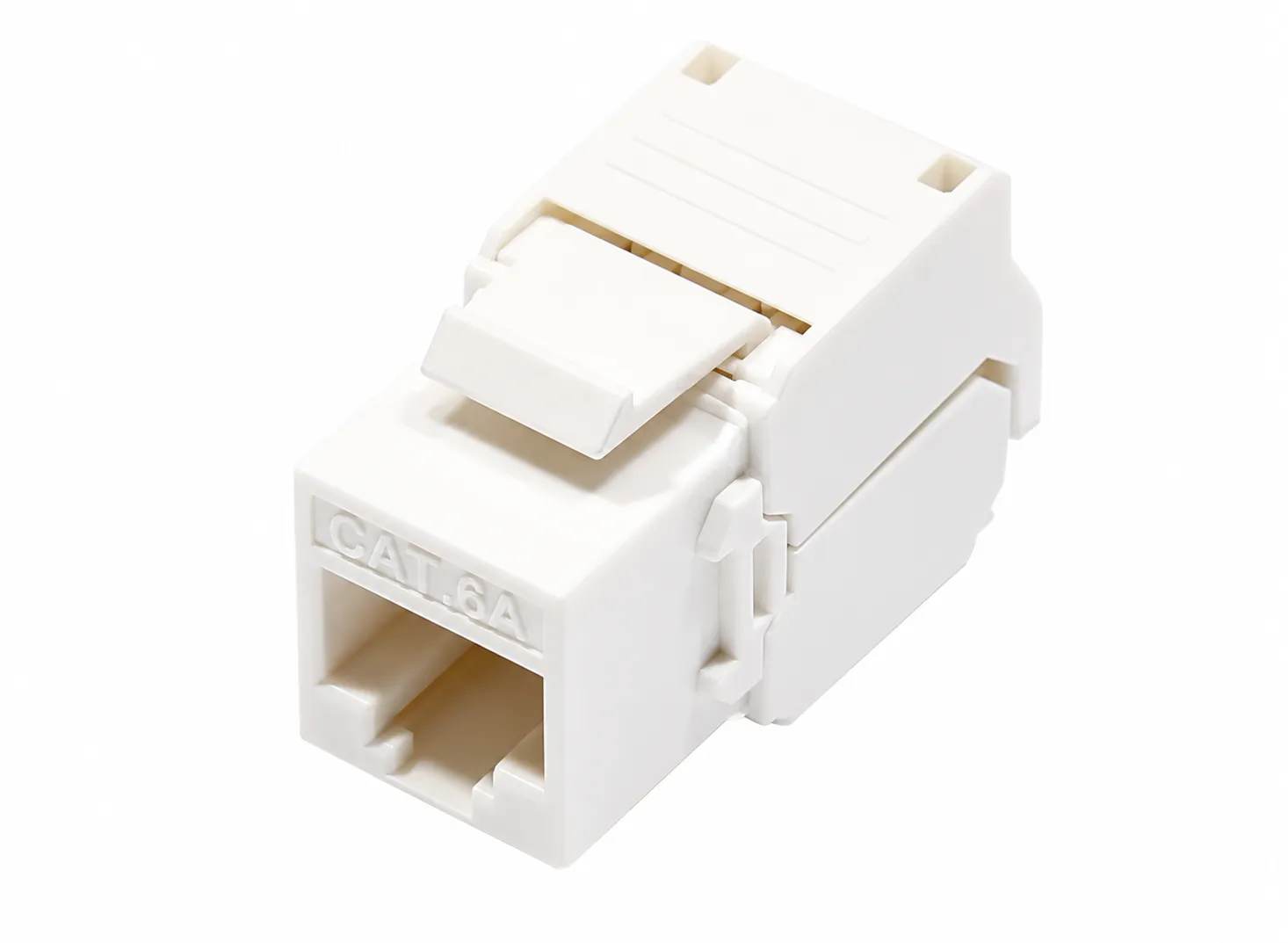

UTP Cat.6A Keystone Jack 180 Degree

Basic Data of UTP Cat.6A Keystone jack 180 degree

Product No.: CL-KJ-C6A04

Delivery Time: 15-20 days

MOQ（Neutral): 2000pcs

Package: Neutral or OEM Package

Payment Term: Western Union, Paypal, T/T


CL-KJ-C6A04 Datasheet CL-KJ-C6A04 Video
  • cl kj c6a04 2
  • cl kj c6a04
  • cl kj c6a04 3
  • cl kj c6a04 4
  • cl kj c6a04 5

Product Features of UTP Cat.6A Keystone Jack 180 Degree

Product type

Cat.6A UTP

Transmit capacity

500MHz

Wire Gauge Supported

22-26AWG

Housing material

PC

Punching duration

250 times

RJ45 jack life

750 times

RJ45 contact material

Phosphor bronze

Termination type

Toolless

Thickness of the pin

3μ/6μ/15μ/30μ/50μ

Wiring scheme

T568A&T568B

Certification

CE, UL, RoHs, ETL

Warranty

25 years

Technique Characteristics of UTP Cat.6A Keystone jack 180 degree

  • PCB material: FR-4 T=1.2mm

  •  IDC LIFE: 200 TIMES MIN

  •   Inserting Duration: 750 times.

  •  IDC clips: Tinned phosphor bronze pins.

  •   IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING

  • Connecting: RJ45 Port for UTP Patch Cord and the IDC for UTP horizontal cabling.

  •   Fitting for Cat.6 Cabling system, can also be used in Cat.6 and Cat.5e cabling system.

  • According to the standard of ISO/IEC 11801:2002 Class E&ANSI/TIA/EIA/56B2-1 Cat.6A standard.
